Enabling Azure Voice Live API with BYOM

flow

A Complete Technical Guide

Fine-tuned accuracy, regional compliance, and secure real-time voice intelligence

Azure Voice Live API, combined with Bring Your Own Model (BYOM), enables you to integrate your own custom or fine‑tuned models into real‑time voice workflows. This is ideal for scenarios where enterprises require:

BYOM allows you to keep full control of the intelligence while Voice Live delivers ultra‑low‑latency voice interactions.

Why BYOM for Voice Live?

Managed Models vs BYOM

Feature Managed Models (Default) BYOM (Bring Your Own Model)
Control Limited Full control
Compliance Region-dependent Guaranteed data residency
Performance Shared capacity Dedicated PTUs
Customization Minimal High – fine-tuned or custom
Cost Pay-per-use PTU-based flexibility

BYOM Integration Modes

BYOM Mode Description Example Models
byom-azure-openai-realtime Real‑time models for streaming voice interactions gpt-realtime, gpt-realtime-mini
byom-azure-openai-chat-completion Chat/text completion models, including Foundry models gpt-4.1, gpt-5-chat, grok-3, gpt-4o

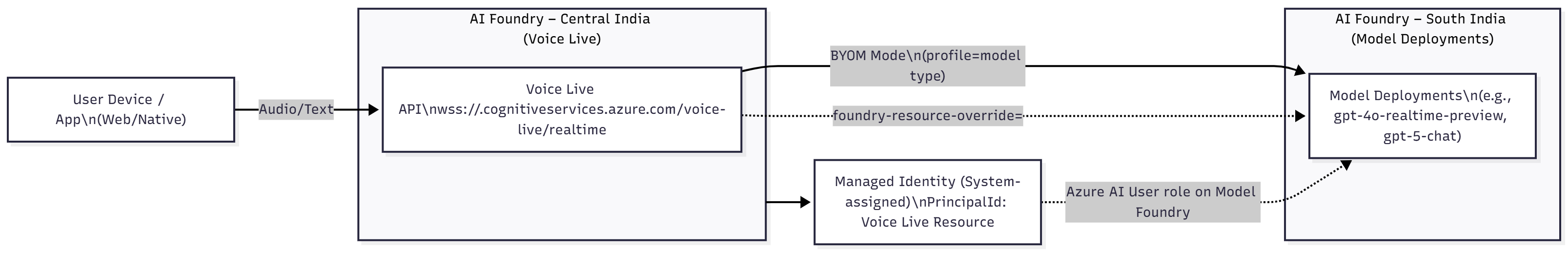

Architecture Overview

flow

This architecture enables:

Implementation Guide

Below is the complete flow to enable Voice Live API using your own model (BYOM).

Step 1: Create Voice Live Resource

  1. Open Azure Portal
  2. Create a Voice Live resource (Azure AI Foundry)
  3. Select the region for real-time voice processing

Step 2: Deploy Your Model (GPT-4o or Fine-Tuned Model)

  1. Create/Use a separate Azure AI Foundry resource
  2. Deploy:
    • gpt-4o
    • gpt-4.1
    • gpt-5-chat
    • grok-3
    • gpt-realtime
    • gpt-realtime-mini
    • A fine-tuned model
  3. Ensure the deployment supports chat completion + voice

Reference:
Deploy Foundry Models

Step 3: Authentication Setup

Microsoft Entra ID Authentication

When using Microsoft Entra ID authentication with Voice Live API, you need to configure proper permissions for your Foundry resource. Since tokens may expire during long sessions, the system-assigned managed identity of the Foundry resource requires access to model deployments for the byom-azure-openai-chat-completion BYOM modes.

Setup Commands

Run the following Azure CLI commands to configure the necessary permissions:

export subscription_id=<your-subscription-id>
export resource_group=<your-resource-group>
export foundry_resource=<your-foundry-resource>

# Enable system-assigned managed identity for the foundry resource
az cognitiveservices account identity assign --name ${foundry_resource} --resource-group ${resource_group} --subscription ${subscription_id}

# Get the system-assigned managed identity object ID
identity_principal_id=$(az cognitiveservices account show --name ${foundry_resource} --resource-group ${resource_group} --subscription ${subscription_id} --query "identity.principalId" -o tsv)

# Assign the Azure AI User role to the system identity of the foundry resource
az role assignment create --assignee-object-id ${identity_principal_id} --role "Azure AI User" --scope /subscriptions/${subscription_id}/resourceGroups/${resource_group}/providers/Microsoft.CognitiveServices/accounts/${foundry_resource}

For usage with Foundry resource overrides, this setup is mandatory. You need to run the setup commands for both the Voice Live Foundry resource and the model Foundry resource, as shown below:

export subscription_id_for_model=<your-subscription-id-for-model-resource>
export resource_group_for_model=<your-resource-group-for-model-resource>
export foundry_resource_for_model=<your-foundry-resource-for-model>

export subscription_id_for_voice_live=<your-subscription-id-for-voice-live-resource>
export resource_group_for_voice_live=<your-resource-group-for-voice-live-resource>
export foundry_resource_for_voice_live=<your-foundry-resource-for-voice-live>

# Enable system-assigned managed identity for the voice live foundry resource
az cognitiveservices account identity assign --name ${foundry_resource_for_voice_live} --resource-group ${resource_group_for_voice_live} --subscription ${subscription_id_for_voice_live}

# Get the system-assigned managed identity object ID for voice live resource
identity_principal_id=$(az cognitiveservices account show --name ${foundry_resource_for_voice_live} --resource-group ${resource_group_for_voice_live} --subscription ${subscription_id_for_voice_live} --query "identity.principalId" -o tsv)
# Assign the Azure AI User role to the system identity of the voice live foundry resource on the model foundry resource
az role assignment create --assignee-object-id ${identity_principal_id} --role "Azure AI User" --scope /subscriptions/${subscription_id_for_model}/resourceGroups/${resource_group_for_model}/providers/Microsoft.CognitiveServices/accounts/${foundry_resource_for_model}

Step 4 — Use Voice Live SDK (VS Code)

Prerequisites

Reference Documentation

Step 5 — BYOM API Call (REST Example)

Use your Voice Live BYOM endpoint:

wss://<your-foundry-resource>.cognitiveservices.azure.com/voice-live/realtime
   ?api-version=2025-10-01
   &profile=<your-byom-mode>
   &model=<your-model-deployment>

Where:

📁 Sample Code Repository

Benefits of Voice Live + BYOM

Conclusion

Azure Voice Live API combined with BYOM offers enterprises:

References
